We supply all high-pressure tubings also provided with high-pressure connections and cut to the required installation length.
The maximum tubing length is determined by the production volumes of 6-7 m, other lengths are available on request.

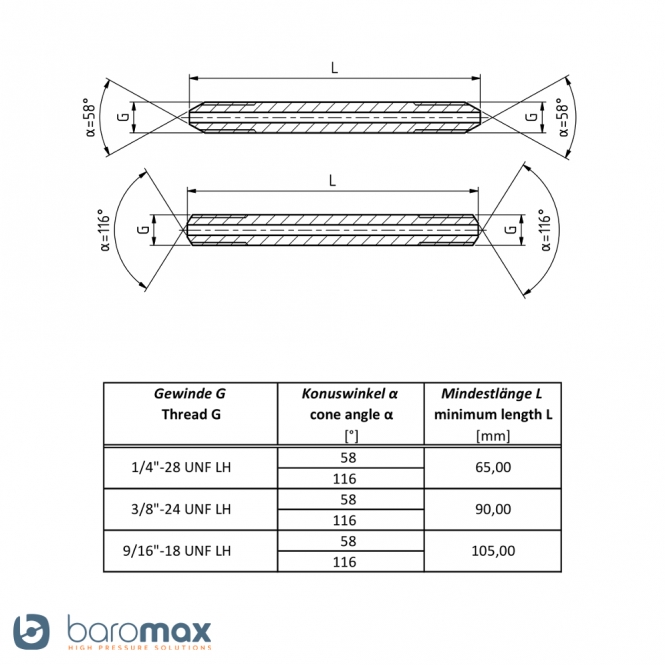

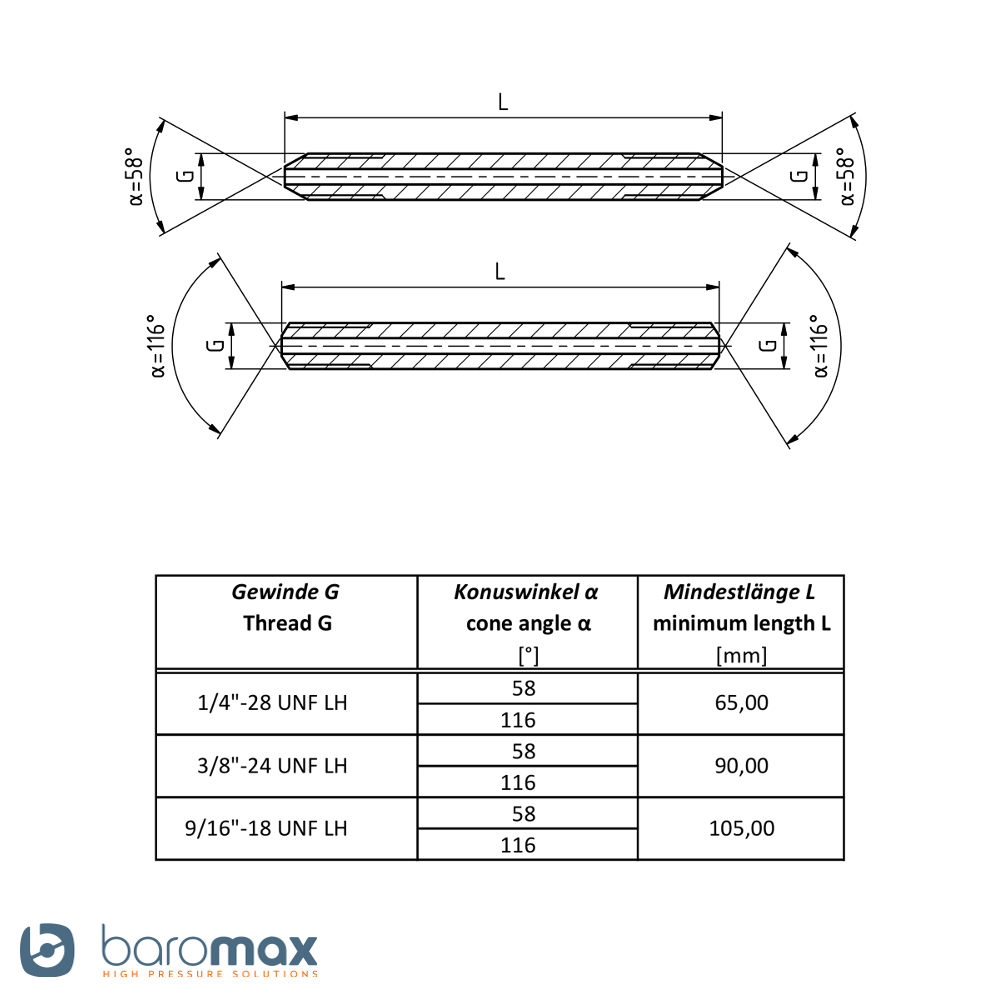

The minimum possible tubing length is determined by the lengths required for the connections and are listed in the table above. If you need shorter connections, we therefore offer our short connections .
Please select the required size based on operating pressure and orifice (notes on here) .
To increase the life and fatigue resistance, we offer to autofrettage high-pressure tubings and high-pressure components. This is particularly recommended for severe or frequent pressure variations. The autofrettage always includes high-pressure connections.
We also manufacture pre-finished pipe spirals according to your drawings or samples. Feel free to contact us.
Important: High-pressure tubing loses significantly in strength when heating over 600 ° C and must therefore neither be bent nor welded or soldered.
